Rental Use Full Color Indoor P4.81
Features:
1.Rental box adopt the die casting aluminum forming, product strength, precision and seamless surface of the whole screen.
2.Die casting aluminum quality improve heat dissipation performance, reduce the light failure, extend the service life of the body
3.The screen body easy maintenance, on-site module can change from house box to maintenance
4. Based on the rapid connection between Body design, assembling cabinet is convenient, fast, don't need the lock bolt
5. Body slim, only 10.5 kg, easy to install
6. Product general spacing is compatible with a variety of point, the product easy to upgrade.
7 noisless,low heat and low radiation
Technical Parameters:
| Parameters | Indoor Die-casting LED display series(576*576) | ||||
| Pixel Pitch (mm) | 3.84mm | 4.0mm | 4.8mm | 5.33mm | 6mm |
| Pixel density(pix/m2) | 67817 | 62500 | 43402 | 35200 | 27777 |
| LED Type | SMD2020 | SMD3528 | |||
| Viewing Angle | H:140,V:140 | ||||
| Brightness(nits) | 1500 | 1600 | 2500 | 2500 | 2000 |
| Drive Method | 1/15 | 1/12 | 1/15 | 1/9 | 1/12 |
| Color Depth | 16bit | ||||
| Refresh Rate(Hz) | 600HZ | 1200HZ | |||
| Module Size (mm) | 288×288 | ||||
| Cabinet Size(mm) | 576×576 | ||||
| Cabinet Material | Die-cast aluminum | ||||
| Cabinet weight(kg) | 10.5 | ||||
| Voltage | 110/250V | ||||
| Average.power(W / m2) | 260 | 230 | 170 | 270 | 190 |
| Max.power (W / m2) | 780 | 670 | 500 | 800 | 560 |
| IP Grade | IP31 | ||||
| Operating temperature/humidity | temperature:-20°C~ 50°C humidity:10~90%RH | ||||
| Storage temperature/ humidity | temperature:-40°C~ 60°C humidity:10~90%RH | ||||
| Lifetime(h) | ≥50000 | ||||
| Compliant Standard | CCC,CE,Rosh | ||||
| Parameters | Indoor Die-casting LED display series(576*576) | ||||
| Pixel Pitch (mm) | 3.84mm | 4.0mm | 4.8mm | 5.33mm | 6mm |
| Pixel density(pix/m2) | 67817 | 62500 | 43402 | 35200 | 27777 |
| LED Type | SMD2020 | SMD3528 | |||
| Viewing Angle | H:140°,V:140° | ||||
| Brightness(nits) | 1500 | 1600 | 2500 | 2500 | 2000 |
| Drive Method | 1/15 | 1/12 | 1/15 | 1/9 | 1/12 |
| Color Depth | 16bit | ||||
| Refresh Rate(Hz) | 600HZ | 1200HZ | |||
| Module Size (mm) | 288×288 | ||||
| Cabinet Size(mm) | 576×576 | ||||
| Cabinet Material | Die-cast aluminum | ||||
| Cabinet weight(kg) | 10.5 | ||||
| Voltage | 110/250V | ||||
| Average.power(W / m2) | 260 | 230 | 170 | 270 | 190 |
| Max.power (W / m2) | 780 | 670 | 500 | 800 | 560 |
| IP Grade | IP31 | ||||
| Operating temperature/humidity | temperature:-20°C~ 50°C humidity:10~90%RH | ||||
| Storage temperature/ humidity | temperature:-40°C~ 60°C humidity:10~90%RH | ||||
| Lifetime(h) | ≥50000 | ||||
| Compliant Standard | CCC,CE,Rosh | ||||
Application area:
·---Indoor advertising, digital billboards, advertising for big companies.
·---Stage background
·---Airports, bus stations and railway passenger terminals.
·---Department stores, banks and car dealerships.
·---Show-business, concerts, festivals, and other public events.
Services:
♥Two years warranty,also provide you free spare parts such as modules, power supply ,LED lamps,lines etc.
♥We can according to customers' requirements to design cabinet size.

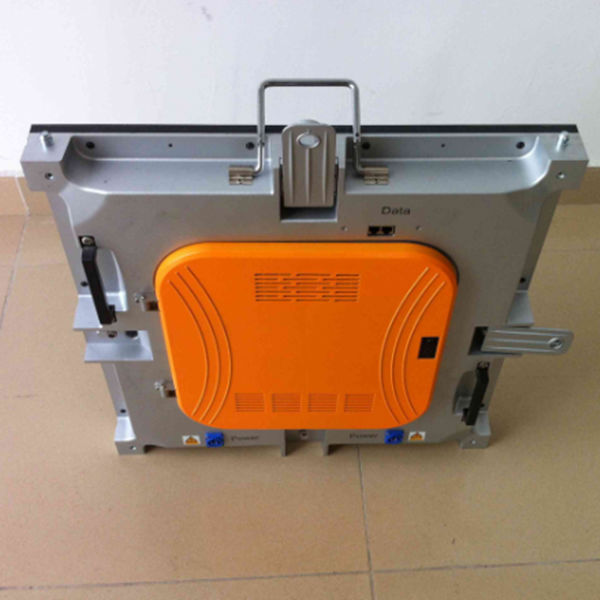

Cabinet:

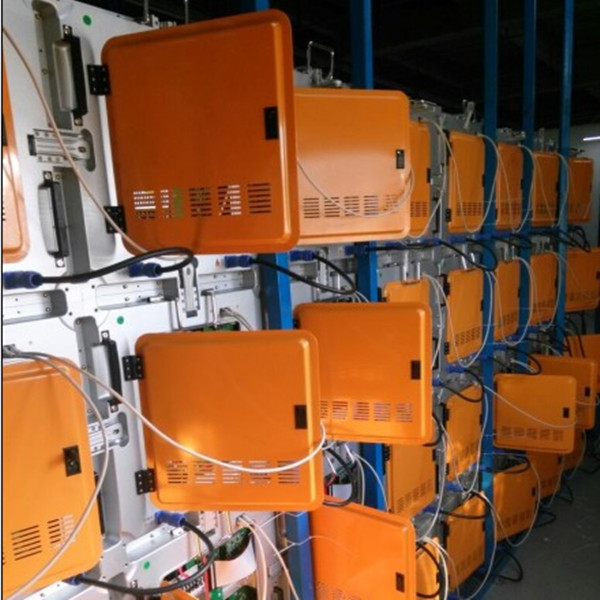

Manufacturing process:
Compliances:
|
|
