| Ask Lasest Price | |
| Brand Name : | GCL |
| Model Number : | |
| Certification : | |
| Price : | US $ 700 - 1,000 / Square Meter |
| Delivery Time : | |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability : | 3000 Square Meter/Square Meters per Month |
| Packaging Details: | Carton / Wooden box /Air box : size according to the cabinets size |
|---|---|
| Delivery Detail: | CFR Shenzhen,this offer is valid for 30days from sending date |
China waterproof advertising bus led display screen
Features:
Splendid video effect
Fashionable design
Aluminum-alloy composition ensures efficient heat dissipation
Grayscale& pixel by pixel corrections ensures the highest image quality
Thin, high density, and lightweight by design
Specific and targeted installation means fast setup and fast dismantling
Seamless jointing technology displays a perfect image
RGB deep gray level management, video synchronous display
Cost effective solution for project on a budget
Go green: Energy-efficient design and low power consumption
Specification:
Serial number | specification | Ph 8 |
1 | Pitch | 8mm |
2 | Module Resolution | 32×16=512dot |
3 | Module Size | 256mm×128mm |
4 | Module Quantity/cabinet | 24pcs |
5 | Cabinet size | 1024mm×768mm |
6 | Resolution/cabinet | 128×96=12288dot |
7 | Density | 15625dot/m2 |
8 | Driving method | Constant driving 1/8 Scan |
9 | Standard | SMD 3 in 1 |
10 | Viewing angle(H/V) | H:150° V:120° |
11 | Brightness | ≥1300CD/m2 |
12 | The optimal viewing distance | 5--40m |
13 | Display colors | 687million |
14 | Pixel configuration | 1R1G1B |
15 | Protection degree | 31IP |
16 | Power | Max:600W/m2 Average:230W/m2 |
17 | Control mode | Video Sync |
18 | Display mode | Max: 1024×768 |
19 | LED parameters | R: λd:620-625nm IV:150-200mcd |
19 | LED parameters | G: λd:520-525nm IV:260-330mcd |
19 | LED parameters | B: λd:465-470nm IV:55-60mcd |
20 | Rate | ≥200HZ |
21 | Communication | Cats≤120m Fiber optical:1000m |
22 | Encapsulation mode | Jiuzhou |
Application area:
·---Indoor advertising, digital billboards, advertising for big companies.
·---Stage background
·---Airports, bus stations and railway passenger terminals.
·---Department stores, banks and car dealerships.
·---Show-business, concerts, festivals, and other public events.
Services:
♥Two years warranty,also provide you free spare parts such as modules, power supply ,LED lamps,lines etc.
♥We can according to customers' requirements to design cabinet size.
Cabinet:

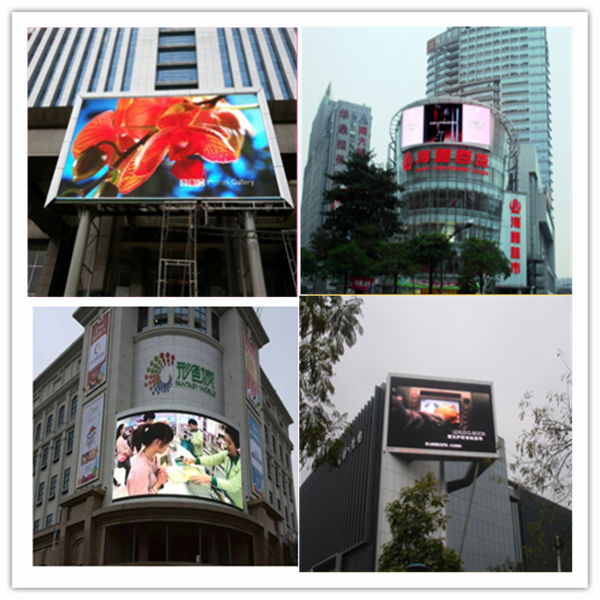

Led display project:
Foreign Fair:
Compliances:
|
|
