1.waterproof dust-proof ,high brightness
2.easy and quick install ,stable performance
3.fast delivery time
High Quality with Competitive Price Advertising P16 Outdoor Led Display
Features:
1) With good lightening accordance and no mosaic
2) Can play different formats of image files, flash, WAV/MIDI,
video signal from
TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same
time, and the image
can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of
changing requirement
of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing
effect
Parameters
| Type | Outdoor Led Display |
| Best Viewing Distance(m) | 15m~200m |
| Pixel Pitch(mm) | 16 |
| Pixel Density(Dots/sqm) | 3096 |
| Configuration | 1R1G1B |
| Module Size(mm) | 256*128 |
| Unit Box Pixel(Dots) | 64*32 |
| Cabinet Size(WxHxT) | 1024* 1024 mm |
| Cabinet Weight(Kg) | 50 |
| Brightness(cd/sqm) | 6000 |
| Refresh Frame Frequency | 1000Hz |
| MTBF(H) | 10000 |
| Maximum Power Consumption(W/sqm) | 1000 |
| Average Power Consumption(W/sqm) | 600 |
| Left/right Viewing Angle(Degree) | 120° |
| Grey Scale | 12bit |
| Display Color | 16777216colors |
| Brightness Adjust | 256grade automatic,100grade manual |
| IP Standard | IP65 |
| Display Module Brightness Uniformity | 5% |
| Pixels Out Of Control Rate(Dots) | 1/100000Dots |
| Life Span(H) | 100000H |
| Operating Voltage | AC220V/50Hz&AC110V/60Hz available |
| System Working Environment Temperature | —20°C~+60°C |
| System Working Environment Humidity | 10%RH~90%RH |

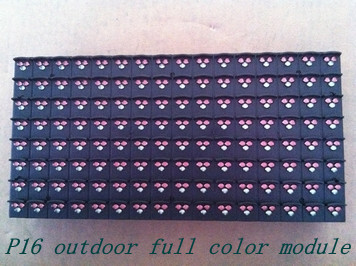

P16 outdoor DIP led module P16 outdoor SMD led module
P16 cabinet
1.Suitable height
2. Water-proof design
3. Multi input and specially software
4. Impact resistance
5. Support different solutions
6.Specially suitable for broadcast
7. Portable and easy transport
8. Adjustable view angle
9. Soft Ware: Windows Base & User Friendly Easy Installation
10. Manual & Automatic Control via Network Wireless, Fiber, & Telephone
11.All Common Video Format Support : WMV , MPEG , AVI , SWF , ASF ,DVD , VCD , RF , HTML , SVIDEO , RGB , YUV , YC , . ..
Our service:
1.Your inquiry related to our products or price will be replied in
24hrs.
2.the size can be change as you give ,your customized lightings we
can help you to design and put into product.Ch3.what we show is some of our current models,welcome to give us
your own ideas.
4.Protection of your sales area,ideas of design and all your private information.
5.(Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)
Welcome to contact me!
|
|
