| Ask Lasest Price | |
| Brand Name : | GCL |
| Model Number : | |
| Certification : | |
| Price : | |
| Delivery Time : | |
| Payment Terms : | T/T |
| Supply Ability : | |
| Packaging Details: | simple cabinet, waterproof cabinet, standard cabinet |
|---|---|
| Delivery Detail: | 7 to 15 working days after payment |

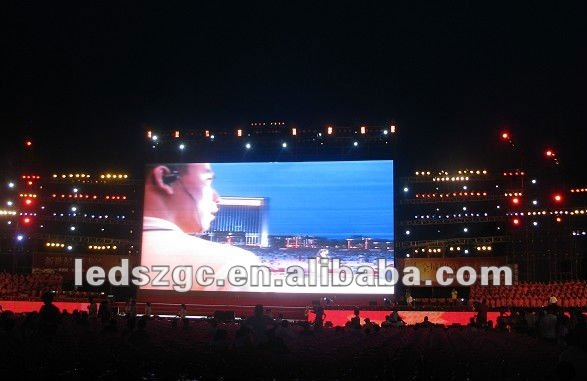

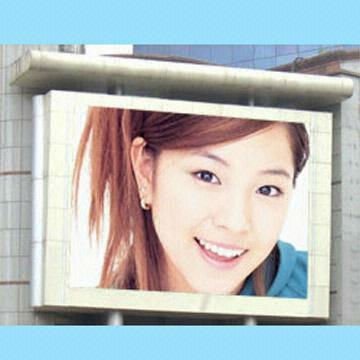

12mm outdoor full color outdoor advertising
1.High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2.Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3.To pictures and character, have clear, exquisite and real display effect
4.Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range,
no picture change, no color excursion
Serial number | specification | P12 |
1 | Pitch | 12mm |
2 | Module Resolution | 16×8=128dot |
3 | Module Size | 192mm×96mm |
4 | Module Quantity/cabinet | 32pcs |
5 | Cabinet size | 768mm×768mm |
6 | Resolution/cabinet | 64×64=9216dot |
7 | Density | 6944dot/m2 |
8 | Driving method | Constant driving 1/4 scan |
9 | Standard | DIP 546 |
10 | Viewing angle(H/V) | H:100±5° V:45° |
11 | Brightness | ≥6000CD/m2 |
12 | The optimal viewing distance | 5--200m |
13 | Display colors | 687million |
14 | Pixel configuration | 1R1G1B |
15 | Protection degree | 65IP |
16 | Power | Max:1200W/m2 Average:500W/m2 |
17 | Control mode | Video Sync |
18 | Display mode | Max: 1280×1024 |
19 | LED parameters | R: λd:622-925nm IV:800-1200mcd |
19 | LED parameters | G: λd:522-525nm IV:1800-2300mcd |
19 | LED parameters | B: λd:471-474nm IV:450-520mcd |
20 | Rate | ≥800HZ |
21 | Communication | Cats≤120m Fiber optical:1000m |
22 | Encapsulation mode | Jiuzhou |
|
|
