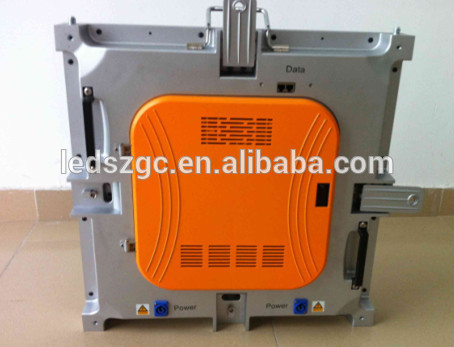

hot sale outdoor led display module
Product Advantages
1.High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3. To pictures and character, have clear, exquisite and real display effect
4.Big viewing angle,no picture change, no color excursion
Serial number | specification | P4 |
1 | Pitch | 4mm |
2 | Module Resolution | 32×32=512dot |
3 | Module Size | 128mm×128mm |
4 | Module Quantity/cabinet | 16pcs |
5 | Cabinet size | 512mm×512mm |
6 | Resolution/cabinet | 64×32=2048dot |
7 | Density | 62500dot/m2 |
8 | Driving method | Constant driving 1/6 Scan |
9 | Standard | SMD 3 in 1 |
10 | Viewing angle(H/V) | H:150° V:120° |
11 | Brightness | ≥2000CD/m2 |
12 | The optimal viewing distance | 1--10m |
13 | Display colors | 687million |
14 | Pixel configuration | 1R1G1B |
15 | Protection degree | 31IP |
16 | Power | Max:1800W/m2 Average:800W/m2 |
17 | Control mode | Video Sync |
18 | Display mode | Max: 1024×768 |
19 | LED parameters | R: λd:620-630nm IV:150-200mcd |
19 | LED parameters | G: λd:520-525nm IV:260-330mcd |
19 | LED parameters | B: λd:465-470nm IV:55-60mcd |
20 | Rate | ≥180HZ |
21 | Communication | Cats≤120m Fiber optical:1000m |
22 | Encapsulation mode | Jiuzhou |
p4
|
|
