2015 LED HD Indoor Fixed Installation Video Display P3
1. high definition
2. high level up degree
3. good price and high quality
4. energy saving and environment protection
5. precise image, no masaic and flicker
6. long lifespan

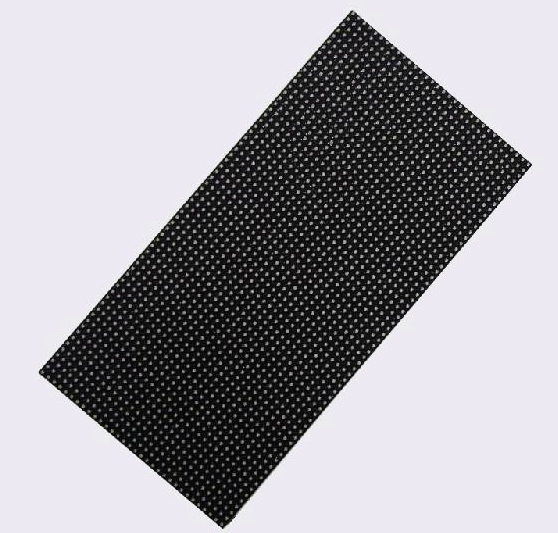

Module | specification | P3 |
| Pixel pitch | 3mm | |
| pixel configuaration | 1R1G1B | |
| density | 111111dot/m2 | |
| module size | 192*96mm | |
| module resolution | 64*32 dot | |
| led type | SMD2121 | |
| brightness | more than 1000cd/m2 | |

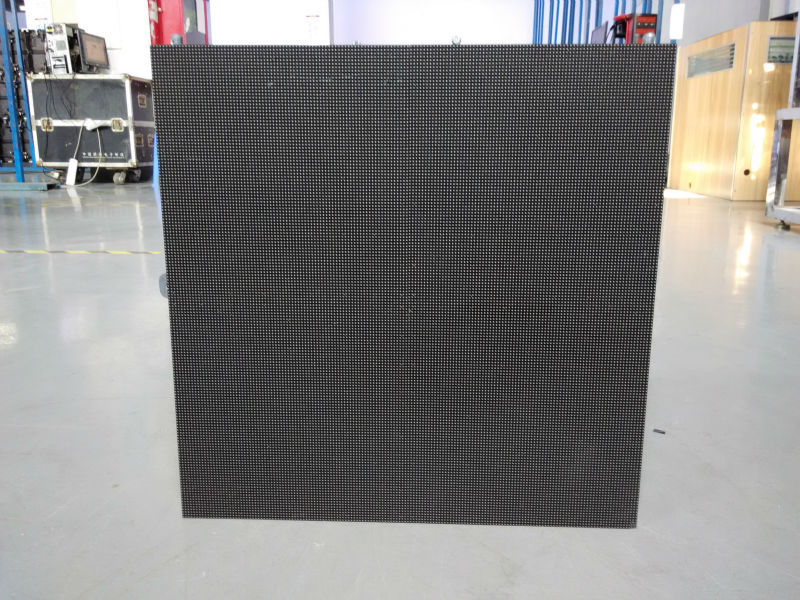

| Cabinet | cabinet size | 768*768mm |
| cabinet resolution | 256*256dot | |
| viewing angle | H: 160º ; V: 160 º | |
| protective grade | IP34 | |
| max power consumption | 1200w/m2 | |
| average power consuption | 480w/m2 | |
| best viewing distance | 3-10m | |
| weight | 7kg | |
| material | customized | |
| Screen | operation temperature | -20 ℃~50 ℃ |
| operation humidity | 10%-90%RH | |
| driving method | 1/16 scan | |
| woking voltage | AC85~264V(47-63hz) | |
| colors | 687 Million Colors | |
| refreash rate | 1200hz | |
| smoothness | ±0.1mm | |
| MTBF | >10,000hr | |
| lifespan | >100,000hr | |
| LED failed | <0.0001(zero when delivery) | |
| Control system and LED | Adopted control system | PCTV Board + DVI Board + Control Board + Network cable Transmission |
| video signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc | |
| LED parameter | R: (620-623nm) G: (519-522nm) B: (466-467 nm) | |
| R: IV(800-1200mcd) G: IV(1800-2300mcd) B: IV(450-520mcd) | ||
| Brightness level | Manual adjustment: 256 levels for R, G, B | |
| Automatic adjustment: 16 grades for each color |
Delivery: 18-25 working day after payment.
Package: carton case, wooden case, flight case
By ship, By air, By DHL, By TNT, etc
Installation:
Easy for fit and dismantle, the design is convenient and safe for installer. The small size can be matching together as a large size by our convenient design.
Application:
Concert, Night club, Live show, Fashion Theater, Stage background, TV show, Wedding Decoration, Bars, Disco Entertainment, Family party, Outdoor party, and etc.
ODM Service:
Our ODM curtain’s size include 2x3m, 2x4m, 3x4m, 4x6m, 3x8m, triangle shape, and etc. Customers can purchase sample at any time and we usually ship sample by DHL within one week.
OEM Service:
If you got any specific requirement, just tell us the size, shape, color of the LED and your favorite hung method, and etc. The cooperation details can be negotiated by both sides.
