| Brand Name : | GCL--P16 |

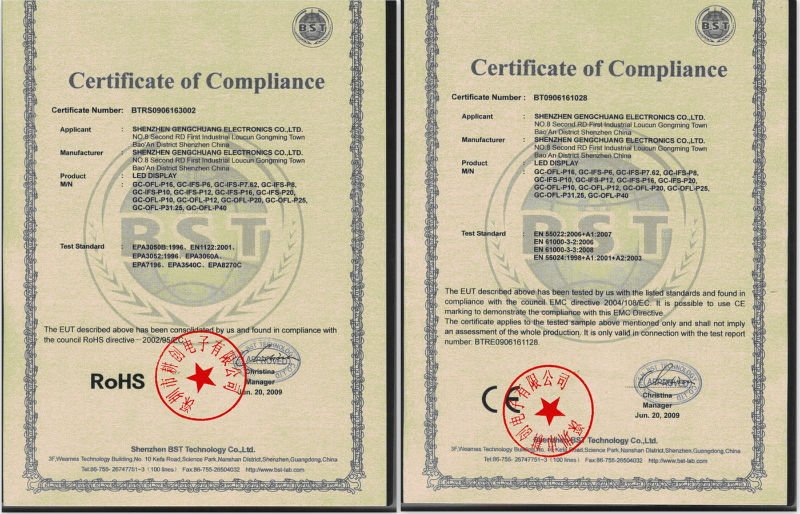

| Certification : | CE,RoHS,ISO9001,CCC |
| Model Number : | GCL _P16 |
| Price : | US $ 1 - 1200 / Square Meter |
| Delivery Time : | 10-15days |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal |
| Supply Ability : | 10000 Square Meter/Square Meters per Month |
P16 outdoor giant led panel
1.Vivid picture
2.RoHS & CE compliance
3.Environment friendly
4.High brightness
| Serial Number | Specification | PH16 |
| 1 | Pitch | 16mm |
| 2 | Module Resolution | 16×8=128 (dot) |
| 3 | Module Size | 256mm ×128mm |
| 4 | Module Quantity/cabinet | 24(Pcs) |
| 5 | Cabinet Size | 1024mm×768mm |
| 6 | Resolution/cabinet | 64×48(dot) |
| 7 | Density | 3906(dot/s.q.m) |
| 8 | LED Driving method | Constant driving / Static Latch |
| 9 | LED Standard | DIP546 |
| 10 | Viewing Angle (H/V) | H:100±5°V:45° |
| 11 | Brightness | ≥8000CD/s.q.m |
| 12 | The Optimal viewing distance | 15-250m |
| 13 | Display Colors | 687(million) |
| 14 | Pixel configuration | 2R1G1B |
| 15 | Protection Degree | 65(IP) |
| 16 | Power | (Max.Consumption): True pixels:900 W/s.q.m |
| Virtual pixels:1200 W/s.q.m | ||
| (Average Power): True pixels:400 W/s.q.m | ||
| Virtual pixels:500 W/s.q.m | ||
| 17 | Control mode | Video Sync |
| 18 | Display Mode | (Max)1024×768/1280×1024 |
| 19 | LED Parametres | (R):λd (619~624nm)IV: (460~510mcd) |
| (G):λd (520~524.5nm)IV: (2000~2300mcd) | ||
| (B):λd (468.5~472.5nm)IV:(490~540mcd) | ||
| 20 | Rate | ≥300Hz |
| 21 | Communication | 1000M Cats(≤120M)/Fiber optical (10.000m) |
|
|
