| Brand Name : | GCL |
| Certification : | CE,RoHS,ISO9001,CCC |
| Model Number : | GCL _P10 |
| Price : | US $ 1 - 1200 / Square Meter |
| Delivery Time : | 10-15days |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal |
| Supply Ability : | 3000 Square Meter/Square Meters per Month |

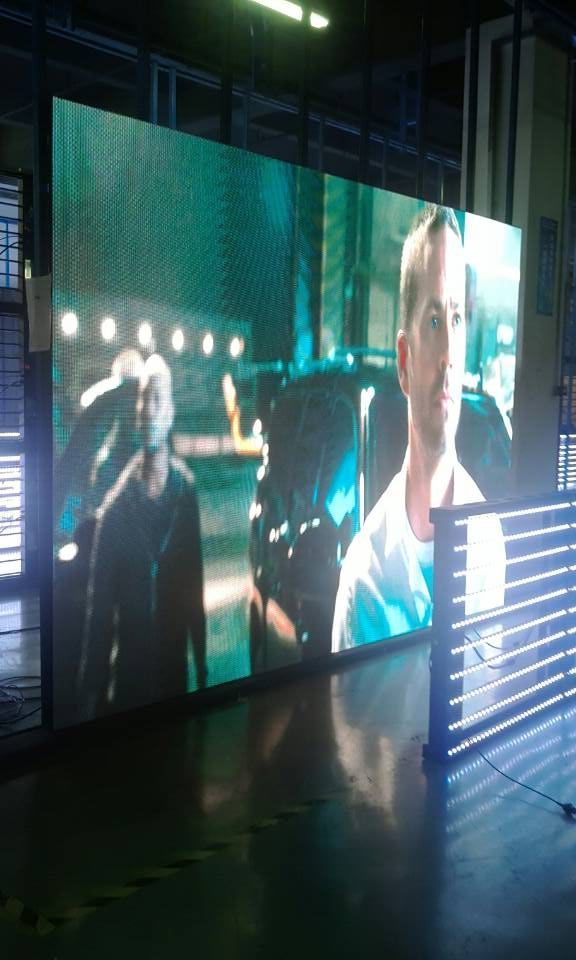

Big Screen Video For Advertising ! Stage ! Sports Stadium ! Full Color P6 P8 P10 Indoor Outdoor Led Video Wall
Specification:
Product Code:P10 full-color led display | |||||
1 | Pixel Information | Pixel Configuration | 1R1G1B | ||
Brightness | 6500cd/sqm | ||||
Lifetime | 100,000hrs | ||||
Continue Work Time | >5000hrs | ||||
2 | Resolution | Pixel Pitch | Physical | ||
Pitch | 10mm | ||||
Pixel Density | 10000dots/sqm | ||||
Display Resolution | 160mm*160mm | ||||
3 | Display Screen | Cabinet Dimensions(W*H) | 960mm*800mm | ||
Single Cabinet Weight | 25kg | ||||
4 | Viewing | Horizontal Viewing Angle | 110°±55° | ||
Vertical Viewing Angle | 90°±45° | ||||
Viewing Distance | 10-250m | ||||
Contrast Ratio | 200:1 | ||||
5 | Interface | Playing Content | Video,Flash,Text,Graphic | ||
Video Input | DVI,S-Video,Composite Signal,etc. | ||||
System Software | Windows98/XP/2000/vista | ||||
File Formats | JPEG,MPEG,BMP,SWF,GIF,DAT | ||||
6 | Communication | Communication Profile | RS232/WIFI/Network | ||
Transfer Distance | LANcable(<100m) | ||||
7 | Power | Power Voltage | AC110V/220±10%,50/60Hz | ||
Power Consumption Per/sqm-Max | 1000w/sqm | ||||
Power Consumption Per/sqm-Ave | 300-600w/sqm | ||||
Scanning | 1/4 Scan | ||||
8 | Engineering | Ventilation/Cooling | Forced Air Cooling | ||
Weather Protect | IP65 Front & IP54 Back | ||||
Service ability | Back Maintenance | ||||
Features:
l1.flexibility
GCL large format LED boards are built with flexibility, functionality and performance in mind. While GCL prides itself on the reliability of its products, the LED module format allows the system to keep running if one panel needs to be replaced.
2.Impressive image quality
that can be viewed even in direct sunlight, with brightness of 6500 cd/m²
3.Wide viewing angle
4.Precise images
The sub-pixel processing function processes every dot of an image in consideration of the layout of LED lamps, which reproduces a more precise image and sharper, smoother diagonal lines.
5.high IP degree
Dust and waterproof performance which meets IP65 standard
6.Eco-friendly:
GCL does not use environmentally hazardous substances in its products.
|
|
