P6 P8 P10 P16 led display board
Black Friday 2013 hot sale street advertising outdoor led display board led sign led screen led
Features:
1.flexibility
GCL large format LED boards are built with flexibility, functionality and performance in mind. While GCL prides itself on the reliability of its products, the LED module format allows the system to keep running if one panel needs to be replaced.
2.Impressive image quality
that can be viewed even in direct sunlight, with brightness of 7500 cd/m²
3.Wide viewing angle
4.Precise images
The sub-pixel processing function processes every dot of an image in consideration of the layout of LED lamps, which reproduces a more precise image and sharper, smoother diagonal lines.
5.high IP degree
Dust and waterproof performance which meets IP65 standard
6.Eco-friendly:
GCL does not use environmentally hazardous substances in its products.
Specification:
HD full color P10 outdoor led display/led screen/led panel high resolution
GCL Outdoor LED Display Series(P8/P10/P12/P14/P16/P20/P25/P31.25)
Applications:
Mainly for outdoor advertising,information publishing,journalism and communication
in some places,such as cultural square,traffic arteries,stations,terminals,information
centers,entertainment venues,shopping centers,commercial city and etc.
Parameters
No. | Specifications | |
1. | Part No. | HD full color P10 outdoor led display/led screen/led panel for advertising |
2. | LED chip | opto/Silan/Cree/nichia |
3. | Physical Pixel Pitch | 10mm |
4. | Physical Pixel Density | 10000dots/m2 |
5. | Pixel composition | 1Red, 1Green,1Blue |
6. | Moduel Size | 320*160mm, 160*160mm |
7. | Moduel resolution | 32*16dots, 16*16dots |
8. | Cabinet thickness | < 170 mm |
9. | Bracket of cabinet | Easy to install onto the LED cabinet and unistall . |
10. | Brightness | ≥7000cd/m2 |
11. | Colors | 549.7billion |
12. | Viewing angle | Horizontal≥120°, Vertical :≥45° |
13. | Viewing distance | 10m -30m |
14. | Soft Rubber Mask | To protect player and LED display itself . |
15. | Scan frequency | ≥600 Hz There will be one receive card in each cabinet |
16. | Video Frame Rate | ≥150 fps |
17. | Color temperature | 6500°K to 9500°K adjustable |
18. | Control method | Controlled by PC, synchronous display |
19. | Lifespan | ≥100,000 hours |
20. | Weight | 47Kg /sqm |
21. | IP rate | IP65 ( front side and rear side) |
22. | Averagepower consumption | 750W/sqm |
23. | Peak power consumption | 850W/sqm |
24. | Input voltage | AC220V/50Hz±10% or AC110V/60Hz±10% or AC380V/60Hz±10% |
25. | Operating Environment | Temperature:-20+60 Humidity:10%95%RH |
26. | Operating system | Windows 98/2000/ME/XP |
27. | Type of video signal | S-video, composite video ,RGB ,VGA ,DVI |
| Power saving material Save your money when working | |||||||
| LED | Brand | Wavelength | Wavelength Range | electric current | |||
| R | Epistar | 625±5.0nm | IV:400-500mcd | 15-18mA | |||
| G | Silan | 525±2.5nm | IV:1,800-2,200mcd | 13-15mA | |||
| B | Silan | 470±2.5nm | IV:350-450mcd | 9-10mA | |||

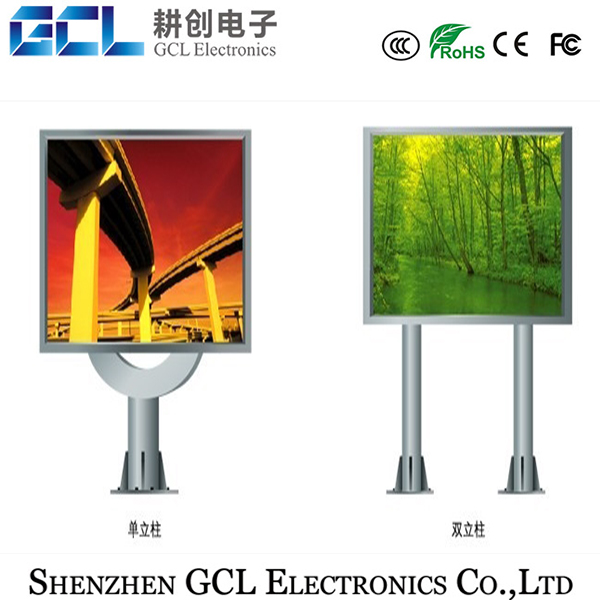

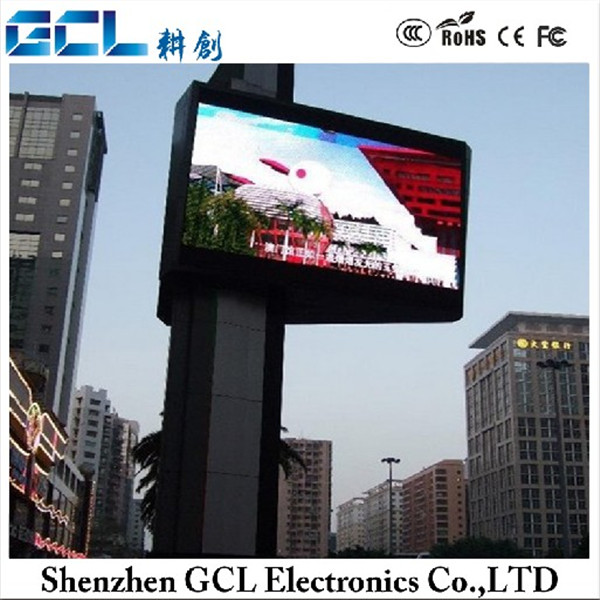

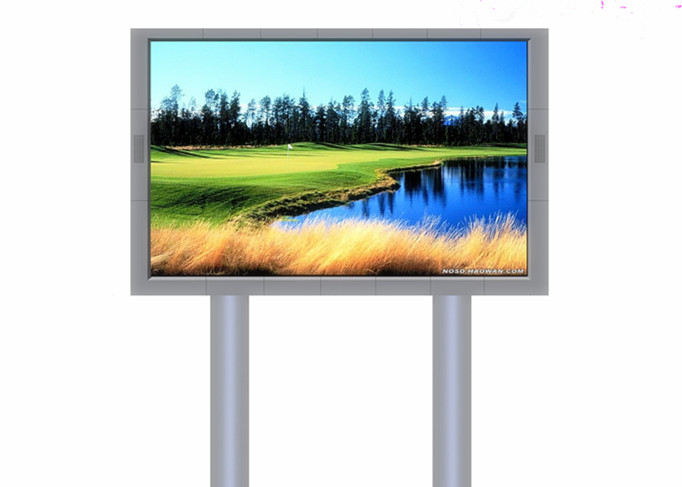

product show
|
|
