P6 P8 P10 outdoor advertising led panel full color x vedio pcb
board screen shenzhen led
High resolution and definition led display p10
Key benefit:
Energy saving, high definition, low heat productivity, superb cost effectiveness.
1. High-quality Component
a. LED lamps: High brightness LED lamps with wide viewing range and low driving current, consuming less power.
b. Driving IC: High-precision constant current LED driving ICs with current gain control; the light decay can be controlled to maintain a stable brightness.
c. Power supply: With PFC (Power Factor Correction) functions to improve the efficiency of power supply produce less heat, and save energy.
2. Advanced Control Technology
a. Calibration: Pixel-by-pixel brightness and color calibration technique to keep uniform brightness and natural colors of LED display.
b. Monitoring: Proprietary control system can monitor the temperature, brightness, status information of LED display in real time.
c. Remote network control: Controlling and changing all display information, controlling the displays of several cities in one place to change the contents at any time.
d. Adjustable brightness: Adjusting screen brightness automatically according to environmental lighting based on sensitive control system, adjusting it manually or by programmable menu.
e. Large screen control: Controlling super large size display stably without any black screen, frame vibration or reducing.
f. High refresh rate, high gray scale and high contrast ratio: More realistic pictures optimize commercial advertisement value.
3. Effective Solution
a. Energy saving: Adopting the techniques of LED lamps with low driving current, adjustable brightness, efficient power supply with PFC, less heat dissipation, special cooling design, and appropriate power distribution from control system.
b. Cooling design: With special designs of separate driving ICs and LED lamps on the PCB, thermal radiator, air flow, ventilation and air conditioning, display could keep working in an appropriate temperature.
c. Long life span:Benefiting from the techniques of energy saving design, high quality LED lamps, effective cooling design,
adjustable brightness, all-round protection, and efficient power supply with PFC.
d. Protection: Outdoor IP65 standard cabinets to protect LED display in extreme weathers; famous brand anti-lightning device to avoid lightning shock; the protective layer of our special conformal coating on PCB board to resist hostile environment.
Technical Parameters:
| Description | Technical parameter | |
| Unit module | Module size | 160*160mm |
| Pixel pitch | 10mm | |
| Pixel density | 10, 000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Led specification | Φ 3ellipse | |
| Pixel resolution | W: 16dots*H: 16dots | |
| Cabinet | Dimension | 960mm*960mm*150mm |
| Quantities of module | 36pcs | |
| Power supply | 6pcs | |
| Thermal discharge | Fan*2pcs | |
| Total weight | 50kg | |
| Best viewing angle | 10-100m | |
| Temperature | Storage: -35degree~+80degree | |
| Working: -35degree~+85degree | ||
| Thickness | 15cm can be adjustable | |
| Remarks: cabinet size can changed, upon project need. | ||
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 300-400W | |
| Max. Power consumption | ≤ 1000W/sqm | |
| Current | ≤ 20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | 1/4scanning |
| Drive type | Constant Current driver IC | |
| Refresh frequency | ≥ 1000Hz | |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
| Brightness of white balance | More than 8000cd/sqm | |
| Brightness adjustment | 256 levels of each color(R/G/B)by software | |
| Operating ambient humidity | 10%--95% | |
| Video signal | PAL/NTSC | |
| Control system | DVI display card+full color controller card | |
| MTBF | ≥ 10, 000hours | |
| Life span | ≥ 100, 000hours | |
| Flatness | Tolerance of interpixel ≤ 0.3mm | |
| Tolerance of modules clearance≤ 0.6mm | ||
| Power switch | Automatic switch | |
| Display mode | 1024*768 | |
| Software | LED media player | |
Services:
♥Two years warranty,also provide you free spare parts such as modules, power supply ,LED lamps,lines etc.
♥We can according to customers' requirements to design cabinet size.

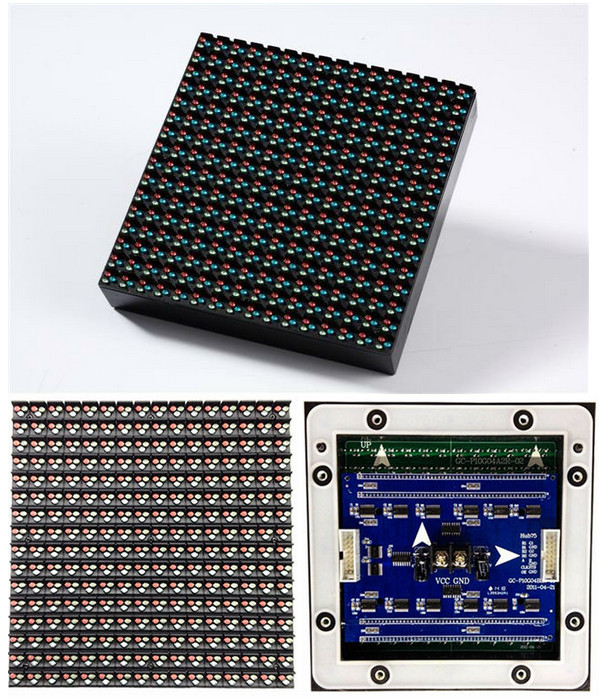

Modules:
Control System:
|
|
