| Brand Name : | GCL |
| Model Number : | |
| Certification : | CE,RoHs,CCC,ISO9001 |
| Price : | US $ 1,119 - 1,499 / Square Meter |
| Delivery Time : | 10-15days |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability : | 3000 Square Meter/Square Meters per Month |
| Delivery Detail: | 15days |
|---|
1.Pitch: 6mm,Cabinet size: 288*288mm, flexible
2. Light Cabinet weight : 7 KG/cabinet
3. experienced manufacture since 1999
China shenzhen high quality flexible indoor Outdoor Led Display screen
Technical Parameters:
number | specification | P6 |
1 | Pitch | 6mm |
2 | Module Resolution | 48×48=2304dot |
3 | Module Size | 288mm×288mm |
4 | Module Quantity/cabinet | 4pcs |
5 | Cabinet size | 576mm×576mm |
6 | Resolution/cabinet | 96×96=9216dot |
7 | Density | 27777dot/m2 |
8 | Driving method | Indoor: Constant driving 1/16 Scan |
9 | LED Type | SMD 3528 |
10 | Viewing angle(H/V) | H:150° V:120° |
11 | Brightness | Indoor: 1500CD/m2 ~ 2000CD/m2 |
12 | Viewing distance | 5--100m |
13 | Display colors | 687million |
14 | Pixel configuration | 1R1G1B |
15 | Protection degree | IP31 |
16 | Power | Indoor: Max:600W/m2 Average:420W/m2 |
17 | Control mode | Video Sync |
18 | Display mode | Max: 1024×768 |
19 | LED parameters | R: λd:620-625nm IV:150-200mcd |
19 | LED parameters | G: λd:520-525nm IV:260-330mcd |
19 | LED parameters | B: λd:465-470nm IV:55-60mcd |
20 | Rate | ≥180HZ |
21 | Communication | Cats≤120m Fiber optical:1000m |
22 | Encapsulation mode | Greeble |

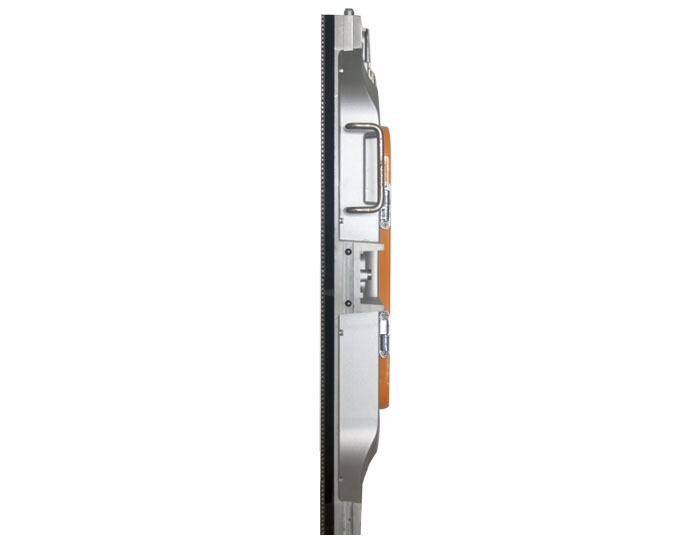

Cabinetsfeatures:
Led outdoor display metal drawing die box, a unified cabinet and module size, can realize a single point of LED brightness and color correction, the entire screen to achieve IP31 protection grade.
