| Brand Name : | GCL |
| Model Number : | |
| Certification : | CE,RoHs,CCC,ISO9001 |
| Price : | US $ 600 - 1,500 / Square Meter |
| Delivery Time : | 10-15days |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability : | 3000 Square Meter/Square Meters per Month |
| Packaging Details: | 1.Wooden case or Flight case 2.Also can according to your requirement 3.Flight case used for rent |
|---|---|
| Delivery Detail: | FOB Shenzhen,that offer is valid for 30days from sending date |
Hot Sales P16 Full Color Outdoor
Led Advertising Display Screen
Key benefit:
Energy saving, high definition, low heat productivity, superb cost effectiveness.
1.Smaller pixel pitch leads to higher definition in certain screen area, so that a clearer display effect.for indoor P6 led display
2.superb cost effectiveness offers you both top notch quality and reasonable price, maximizing the value of your investment.
3.With good lightening accordance and no mosaic.
4.Can play different formats of image files, flash, video signal from TV, video and other equipments.
5.Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinke
6.High brightness, and can be adjustable, meets the needs of customer's requirements.
7.Uses real pixels rather than virtual pixels, better viewing effect .
Technical Parameters:
| GC-OFC-P16 | |
| Screen body area | Any size can be designed |
| Pitch | 16mm |
| Module Size | 256mm*128mm |
| Module cabinet | 24(pcs) |
| Module Resolution | 16*8(dot) |
| Cabinet Size | 1024mm*768mm |
| Resolution/cabinet | 64*48(dot) |
| Density | 3,906(dot/m²) |
| Pixel configuration | 1R1G1B |
| LED Standard | DIP346/546 |
| Power | Average Power: 580W/m² |
| Driving method | Constant driving/Static Latch |
| Brightness | ≥6,000cd/m² |
| Input Voltage | 110V/240V |
| Viewing Angle(H/V) | H: 120° V: 90° |
| Average Power Consumption | 600W/m² |
| Working Temperature | -30°C~55°C |
| The Optimal viewing distance | 15-250m |
| IP Degree | 65 |
| Operating ambient humidity | 10%-95% |
| Color | 687Million Colors |
| Lifespan | >100,000hrs |
| MTBF | >50,000hrs |
| LED Failed | <0.00001 |
| Control Mode | Video Sync |
| Rate | ≥800HZ |
| Encapsulation mode | Jiuzhou |
| Adopted Control System: | PCTV Board + DVI Board + Control Board + Network cable Transmission |
| Video Signal: | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION - YPbPr, PAL/NTSC, HDMI, VGA, HD_SDI etc |
| LED parametr: | R: (620-623nm) G: (519-522nm) B: (466-467nm) |
| IV(800-1200mcd) G: IV1800-2300mcd) B: IV(450-520mcd) | |
| Brightness adjustment: | Manual adjustment: 256 levels for R, G, B |
| Automatic adjustment: 8 grades for each color | |
Application area:
√Outdoor advertising, digital billboards, advertising for big companies.
√Stage background.
√Architecture and social projects, information systems in cities.
√Airports, bus stations and railway passenger terminals.
√Department stores, banks and car dealerships.
Services:
♥Two years warranty,also provide you free spare parts such as modules, power supply ,LED lamps,lines etc.
♥We can according to customers' requirements to design cabinet size.
Modules:

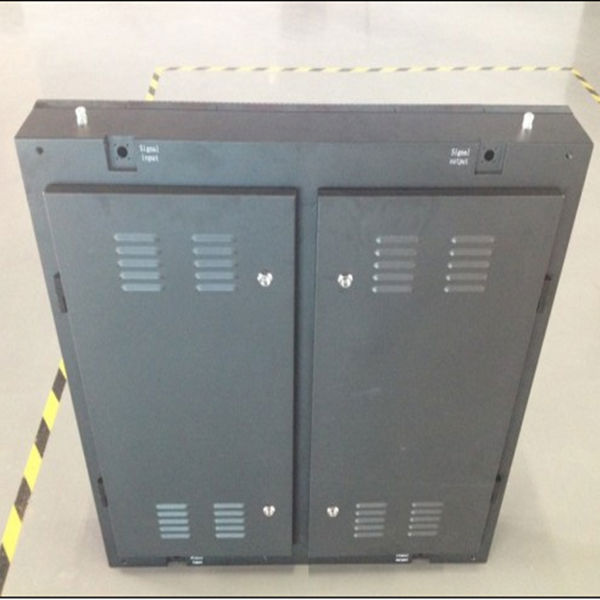

Cabinet:
|
|
